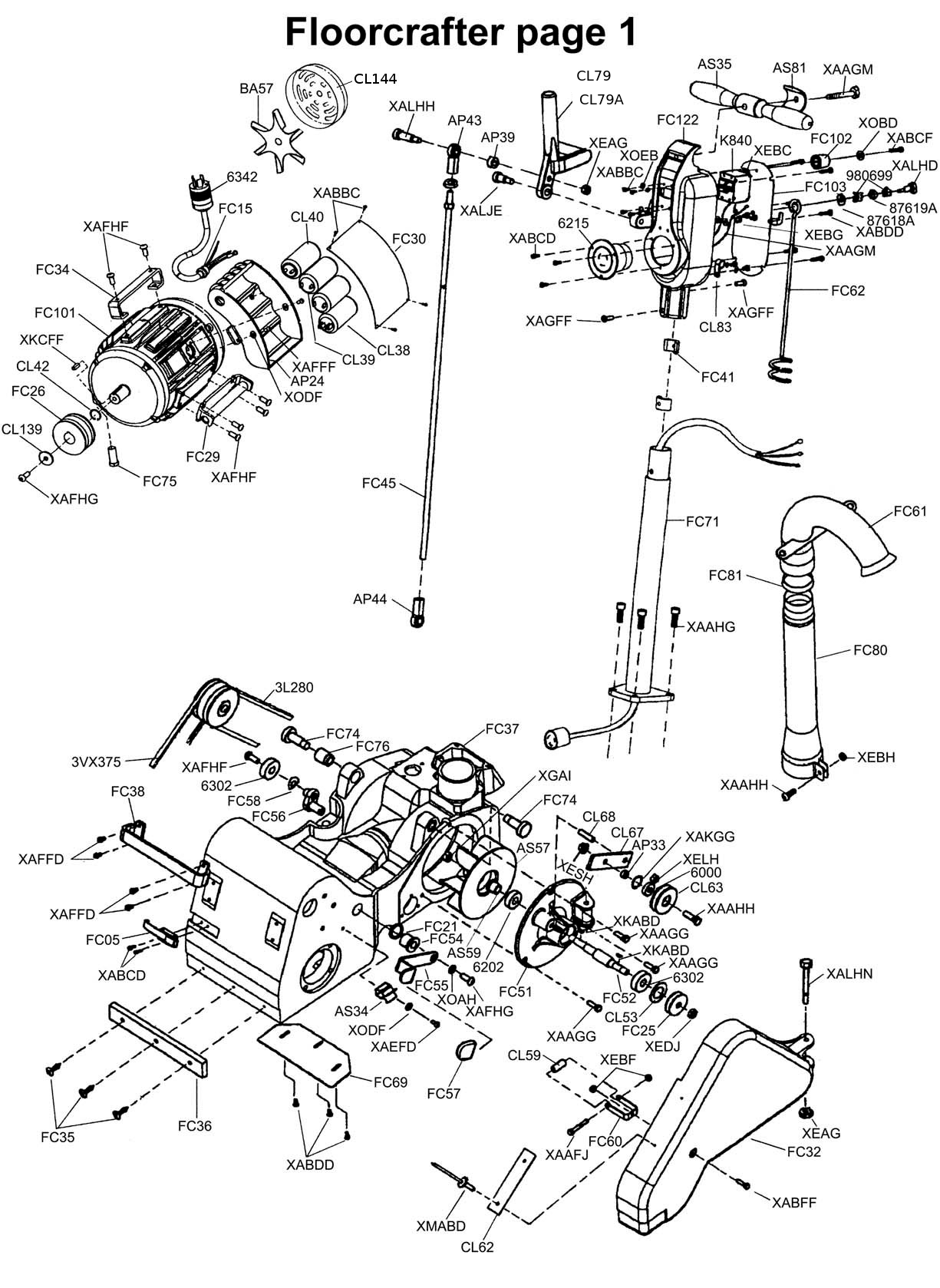

Clarke Floorcrafter Parts Schematic. Click a part number for more information.
Parts Breakdown
Parts Breakdown
Plug, M, 250v 30amp*      630P

Plug, M, 250v 30amp* 630P

NEMA L6-30 30 amp 250 volt grounding twist-lock male plug. This is the standard size used on KT & Galaxy machines. Eaton Cooper Arrow Hart Brand

$15.30

Item # 6342

30 Amp Circuit Breaker Switch*

30 Amp Circuit Breaker Switch*

These 2-pole circuit breaker switches are used on most Clarke/Alto sanders. This is 30 amp with push connect terminals, standard for most machines.

$53.78

Item # K840

Inlet 250v 20amp*        620FI

Inlet 250v 20amp* 620FI

NEMA L6-20 20 amp 250 volt grounding twist-lock male flanged inlet. This is the standard size used on the Hummel & Clarke/Alto machines. Eaton Cooper Arrow Hart Brand

$12.18

Item # 6215

Belt, 3L280

Belt, 3L280

3L Series belt. These are commonly used for fans on large sanders or to drive the pads on radiator edgers. 3/8 Wide x 7/32 thick.

$8.00

Item # 3L280

Belt, 3VX375

Belt, 3VX375

3VX Series belt. These are the type that fit most modern machines. 3/8" wide x 5/16" thick cogged.

$12.00

Item # 3VX375

Bearing, Ball, 6000-2RS

Bearing, Ball, 6000-2RS

Sealed ball bearing. Commonly found on sanders, buffers and edgers. If you are not sure what bearing you need, see the parts diagram for your machine.

$6.00

Item # 6000

Bearing, Ball, 6002-2RS

Bearing, Ball, 6002-2RS

Sealed ball bearing. Commonly found on sanders, buffers and edgers. If you are not sure what bearing you need, see the parts diagram for your machine.

$7.00

Item # 6002

Bearing, Ball, 6202-2RS

Bearing, Ball, 6202-2RS

Sealed ball bearing. Commonly found on sanders, buffers and edgers. If you are not sure what bearing you need, see the parts diagram for your machine.

$6.00

Item # 6202

Bearing, Ball, 6207-2RS

Bearing, Ball, 6207-2RS

Sealed ball bearing. Commonly found on sanders, buffers and edgers. If you are not sure what bearing you need, see the parts diagram for your machine.

$15.00

Item # 6207

Bearing, Ball, 6302-2RS

Bearing, Ball, 6302-2RS

Sealed ball bearing. Commonly found on sanders, buffers and edgers. If you are not sure what bearing you need, see the parts diagram for your machine.

$9.00

Item # 6302

Bearing, Ball, 6306-2RS

Bearing, Ball, 6306-2RS

Sealed ball bearing. Commonly found on sanders, buffers and edgers. If you are not sure what bearing you need, see the parts diagram for your machine.

$19.00

Item # 6306

Adjuster, Top Roller*

Adjuster, Top Roller*

$55.50

Item # CL21

Adjustment Bolt

Adjustment Bolt

$13.75

Item # FC76

Axle, Caster Wheels

Axle, Caster Wheels

$19.02

Item # FC86

Axle, Side Wheel

Axle, Side Wheel

$14.92

Item # FC85

Bearing FC/AP Wheel Truck

Bearing FC/AP Wheel Truck

$47.54

Item # 51190A

Bearing Housing

Bearing Housing

$83.91

Item # FC16

Bearing, Ball, 608-2RS

Bearing, Ball, 608-2RS

Miniature size sealed ball bearing. Most commonly used on cone rollers for belt sanders.

$10.00

Item # 608

Bearing, Ball, FR82RS

Bearing, Ball, FR82RS

$6.18

Item # FR82RS

Bearing, Flange

Bearing, Flange

$6.62

Item # FC54

Belt Guard~

Belt Guard~

$343.42

Item # FC32

Boot

Boot

$22.00

Item # FC97

Brace

Brace

$35.09

Item # FC109

Bracket

Bracket

$11.83

Item # FC60

Bracket

Bracket

$24.76

Item # FC07

Bracket, Left

Bracket, Left

$56.27

Item # FC107

Bracket, Right

Bracket, Right

$56.27

Item # FC108

Bumper, Front

Bumper, Front

$33.33

Item # FC36

Cable Arm

Cable Arm

$81.27

Item # FC62

Cam, Motor Tensioner

Cam, Motor Tensioner

$66.79

Item # FC56

Cam, Release

Cam, Release

Clarke Floorcrafter Sander upper roller cam release

$31.50

Item # FC98

Capacitor, Run, 40mfd

Capacitor, Run, 40mfd

$22.00

Item # CL40

Capacitor, Start, 161-193mfd

Capacitor, Start, 161-193mfd

Start Capacitor (plastic) two required for Baldor motors used on the Clarke Apollo 8, Clarke Classic 8, Clarke Floorcrafter, Clarke American 8 (3450 RPM)

$18.50

Item # CL39

Carriage Tension Roller

Carriage Tension Roller

$315.36

Item # FC23

Carrier

Carrier

$274.95

Item # FC11

Caster Pivot Stud

Caster Pivot Stud

$10.00

Item # FC39

Caster Yoke

Caster Yoke

$118.96

Item # FC87

Clamp

Clamp

$7.03

Item # CL83

clip ring, 1

clip ring, 1

$1.00

Item # XMBO

clip ring, 9/16

clip ring, 9/16

$1.00

Item # XMBK

Clip, Side Cover

Clip, Side Cover

$20.90

Item # AS34

Cone Roller

Cone Roller

$59.50

Item # FC31

Control Rod

Control Rod

$46.42

Item # FC45

Cover, Switch Box

Cover, Switch Box

$48.80

Item # FC103

Dolly Skewer Clamp

Dolly Skewer Clamp

$11.99

Item # FC100

Door Latch

Door Latch

$10.50

Item # FC05

Door, Side

Door, Side

$184.36

Item # FC90

Drum Shaft

Drum Shaft

$328.94

Item # FC10

Drum, New Floorcrafter~

Drum, New Floorcrafter~

$860.53

Item # FC17

Dust Pipe Elbow~

Dust Pipe Elbow~

$233.51

Item # FC61

Dust Pipe~

Dust Pipe~

$154.96

Item # FC80

Dust Shoe

Dust Shoe

$27.15

Item # FC69

E-clip, 1/4

E-clip, 1/4

$1.00

Item # XMFF

E-clip, 5/8

E-clip, 5/8

$1.00

Item # XMFL

Enclosure, Mtr Start

Enclosure, Mtr Start

$112.59

Item # AP24

Eye Bolt 1/2id 1/4-20x3OAL

Eye Bolt 1/2id 1/4-20x3OAL

$7.03

Item # FC03

Fan Cover

Fan Cover

$277.80

Item # FC51

Fan Cover, Baldor Motor

Fan Cover, Baldor Motor

Motor fan cover for 4hp Baldor motors on Clarke sanders. Fits Apollo, Clasic, Floorcrafter and newer American 8 & 12 sanders.

$49.00

Item # CL144

Fan Shaft

Fan Shaft

$104.39

Item # FC52

Fan Shaft Collar*

Fan Shaft Collar*

$35.00

Item # AS59

Fan*

Fan*

$108.77

Item # AS57

Fan, Motor Cooling Snd 1600

Fan, Motor Cooling Snd 1600

$56.73

Item # BA57

Felt Ring, Drum

Felt Ring, Drum

$7.15

Item # FC40

Felt Seal

Felt Seal

$4.14

Item # FC81

Guide Roller Lower Chassis

Guide Roller Lower Chassis

$107.80

Item # FC42

Handle Clamp

Handle Clamp

$8.40

Item # AS81

Handle Tube~

Handle Tube~

$254.10

Item # FC71

Handle, Main Frame

Handle, Main Frame

$39.92

Item # FC38

Handle, Motor

Handle, Motor

$44.81

Item # FC34

Idler Arm

Idler Arm

$13.73

Item # CL67

Idler Pulley 3vx*

Idler Pulley 3vx*

$62.00

Item # CL63

Key, square, 1/4 x 0.75

Key, square, 1/4 x 0.75

$3.00

Item # XKCFF

Key, woodruf, 1/8 x 0.5

Key, woodruf, 1/8 x 0.5

$1.00

Item # XKABD

Knob

Knob

$10.00

Item # FC08

Lever

Lever

$31.02

Item # FC92

Lever

Lever

$163.57

Item # CL79

Lever

Lever

$13.59

Item # FC04

Lever Cover

Lever Cover

$7.30

Item # FC57

Lever, Draw

Lever, Draw

$61.60

Item # FC20

Lever, Motor Tension

Lever, Motor Tension

$25.20

Item # FC55

LH Nut, hex, 7/16-14

LH Nut, hex, 7/16-14

$2.00

Item # XGAI

Link

Link

$12.45

Item # FC19

Link, Threaded Shaft

Link, Threaded Shaft

$1.75

Item # FC44

Main Frame~

Main Frame~

$1,296.89

Item # FC37

Met. Washer, sae, 14

Met. Washer, sae, 14

$1.00

Item # XPAL

Motor Mount, Rear

Motor Mount, Rear

$109.99

Item # FC29

Motor, 4hp~

Motor, 4hp~

$2,614.35

Item # FC101

Mounting Bracket, Left

Mounting Bracket, Left

$27.06

Item # FC105

Mounting Bracket, Right

Mounting Bracket, Right

$28.30

Item # FC106

Nut, flange, 1/2-13

Nut, flange, 1/2-13

$1.00

Item # XESJ

Nut, flange, 3/8-16

Nut, flange, 3/8-16

$1.00

Item # XESH

Nut, hex, 3/8-16

Nut, hex, 3/8-16

$1.00

Item # XEAH

Nut, hex, 5/16-18

Nut, hex, 5/16-18

$1.00

Item # XEAG

Nut, jam, 1/2-13

Nut, jam, 1/2-13

$1.00

Item # XEDJ

Nut, jam, 1/4-20

Nut, jam, 1/4-20

$1.00

Item # XEDF

Nut, jam, 1/4-28

Nut, jam, 1/4-28

$1.00

Item # XEMF

Nut, lock, 3/8-24

Nut, lock, 3/8-24

$1.00

Item # XELH

Nut, nylock, 1/4-20

Nut, nylock, 1/4-20

$3.00

Item # XEBF

Nut, nylock, 10-24

Nut, nylock, 10-24

$1.00

Item # XEBD

Nut, nylock, 3/4-10

Nut, nylock, 3/4-10

$2.00

Item # XEBM

Nut, nylock, 3/8-16

Nut, nylock, 3/8-16

$1.00

Item # XEBH

Nut, nylock, 5/16-18

Nut, nylock, 5/16-18

$1.00

Item # XEBG

Nut, nylock, 8-32

Nut, nylock, 8-32

$1.00

Item # XEBC

Pad

Pad

$32.53

Item # FC46

Pin

Pin

$6.76

Item # FC06

Pin, Motor Mount

Pin, Motor Mount

$41.77

Item # FC74

Pin, roll, 3/16 x 0.5

Pin, roll, 3/16 x 0.5

$1.00

Item # XIADD

Plastic Bumper

Plastic Bumper

$7.29

Item # FC102

Plate

Plate

$23.88

Item # FC30

Plate

Plate

$24.45

Item # CL62

Plate

Plate

$11.32

Item # FC22

Plate

Plate

$10.98

Item # FC12

Pulley, Drum

Pulley, Drum

$148.21

Item # FC13

Pulley, Fan

Pulley, Fan

$27.85

Item # FC25

Pulley, Motor

Pulley, Motor

$162.19

Item # FC26

Recovered Floorcrafter 8 Drum

Recovered Floorcrafter 8 Drum

We recover your Floorcrafter drum in BLACK rubber. Finished with grooves similar to a HUMMEL sanding drum. The grooves push the sanding dust towards the door instead of inside and behind the drum. This drum is tapered (football shaped). This is the same as a Hummel sander and may help tracking issues. It is balanced to same or better specs than OEM. It is ground so on machine dressing is not necessary.

$280.00

Item # RFC8

Retainer

Retainer

$1.00

Item # CL53

Retainer

Retainer

$3.50

Item # CL139

Retainer

Retainer

$10.90

Item # FC18

Retainer

Retainer

$3.00

Item # CL42

Retainer Clamp

Retainer Clamp

$17.89

Item # FC41

Retainer, Bearing

Retainer, Bearing

$24.26

Item # AP09

Rivet

Rivet

$14.00

Item # FC35

rivet, 1/8 x 0.5

rivet, 1/8 x 0.5

$1.00

Item # XMABD

Rod End

Rod End

$37.75

Item # AP43

Rod End LH

Rod End LH

$37.75

Item # AP44

Rod End RH

Rod End RH

$11.03

Item # FC43

Roller Axle*

Roller Axle*

$78.98

Item # FC134

Roller*

Roller*

$220.00

Item # FC135R

Screw, button, 1/4-20 x 0.5

Screw, button, 1/4-20 x 0.5

$1.00

Item # XAFFD

Screw, button, 1/4-20 x 0.625

Screw, button, 1/4-20 x 0.625

$1.00

Item # XAFFE

Screw, button, 1/4-20 x 0.75

Screw, button, 1/4-20 x 0.75

$1.00

Item # XAFFF

Screw, button, 1/4-20 x 0.875

Screw, button, 1/4-20 x 0.875

$1.00

Item # XAFFZ

Screw, button, 10-24 x 0.5

Screw, button, 10-24 x 0.5

$1.00

Item # XAFDD

Screw, button, 3/8-16 x 0.75

Screw, button, 3/8-16 x 0.75

$1.00

Item # XAFHF

Screw, button, 3/8-16 x 1

Screw, button, 3/8-16 x 1

$1.00

Item # XAFHG

Screw, carraige, 5/16-18 x 1

Screw, carraige, 5/16-18 x 1

$1.00

Item # XAKGG

Screw, flat socket, 1/4-20x0.75

Screw, flat socket, 1/4-20x0.75

$1.00

Item # XAGFF

Screw, flat, 1/4-20 x 0.625

Screw, flat, 1/4-20 x 0.625

$1.00

Item # XACFE

Screw, hex, 1/4-20 x 1

Screw, hex, 1/4-20 x 1

$1.00

Item # XAAFG

Screw, hex, 1/4-20 x 1.75

Screw, hex, 1/4-20 x 1.75

$1.00

Item # XAAFJ

Screw, hex, 3/8-16 x 1

Screw, hex, 3/8-16 x 1

$1.00

Item # XAAHG

Screw, hex, 3/8-16 x 1.25

Screw, hex, 3/8-16 x 1.25

$1.00

Item # XAAHH

Screw, hex, 3/8-16 x 1.5

Screw, hex, 3/8-16 x 1.5

$1.00

Item # XAAHI

Screw, hex, 5/16-18 x 1

Screw, hex, 5/16-18 x 1

$1.00

Item # XAAGG

Screw, hex, 5/16-18 x 2.5

Screw, hex, 5/16-18 x 2.5

$1.00

Item # XAAGM

Screw, Leveling

Screw, Leveling

$26.40

Item # FC14

Screw, Motor Adjusting

Screw, Motor Adjusting

$10.30

Item # FC75

Screw, pan, 1/4-20 x 0.5

Screw, pan, 1/4-20 x 0.5

$1.00

Item # XABFD

Screw, pan, 1/4-20 x 0.75

Screw, pan, 1/4-20 x 0.75

$1.00

Item # XABFF

Screw, pan, 10-24 x 0.5

Screw, pan, 10-24 x 0.5

$1.00

Item # XABDD

Screw, pan, 6-32 x 0.375

Screw, pan, 6-32 x 0.375

$1.00

Item # XABBC

Screw, pan, 8-32 x 0.5

Screw, pan, 8-32 x 0.5

$1.00

Item # XABCD

Screw, pan, 8-32 x 0.75

Screw, pan, 8-32 x 0.75

$1.00

Item # XABCF

Screw, set, 1/4-20 x 0.375

Screw, set, 1/4-20 x 0.375

$1.00

Item # XAHFC

Screw, set, 10-24 x 0.375

Screw, set, 10-24 x 0.375

$1.00

Item # XAHDC

Screw, shoulder, 1/2 x 0.625

Screw, shoulder, 1/2 x 0.625

$5.00

Item # XALJE

Screw, Shoulder, 1/2 x 1.75

Screw, Shoulder, 1/2 x 1.75

$6.00

Item # XALJJ

Screw, shoulder, 1/4 x 1

Screw, shoulder, 1/4 x 1

$3.00

Item # XALFG

Screw, shoulder, 3/8 x 0.5

Screw, shoulder, 3/8 x 0.5

$3.00

Item # XALHD

Screw, shoulder, 3/8 x 1.25

Screw, shoulder, 3/8 x 1.25

$4.00

Item # XALHH

Screw, shoulder, 3/8 x 2.75

Screw, shoulder, 3/8 x 2.75

$5.00

Item # XALHN

Screw, socket, 1/4-20 x 0.5

Screw, socket, 1/4-20 x 0.5

$1.00

Item # XAEFD

Screw, socket, 3/8-16 x 1

Screw, socket, 3/8-16 x 1

$1.00

Item # XAEHG

Shoulder Bolt, Long

Shoulder Bolt, Long

$13.57

Item # FC33

Shoulder Bolt, Short

Shoulder Bolt, Short

$13.91

Item # FC02

Sinpac Switch *

Sinpac Switch *

Electronic start switch used on most modern sanders and buffers. This switch controls the start capacitors. Fits many 220 volt sanders. Model 2VR50 with cutout voltage of 310. For a cutout voltage of 260, order part number BB206. Note - Due to supply chain problems, there is a shortage of these. Consider using the BB206 instead.

$160.00

Item # CL38

Spacer

Spacer

$9.79

Item # FC151

Spacer

Spacer

$7.51

Item # AP39

Spacer

Spacer

$7.17

Item # FC58

Spacer, Wheel Bearing*

Spacer, Wheel Bearing*

$6.75

Item # AS83

Spring Top Roller

Spring Top Roller

$13.59

Item # FC99

Spring, Pressure Adjust

Spring, Pressure Adjust

$14.00

Item # FC24

Strain Relief,

Strain Relief,

$7.06

Item # FC15

Stud

Stud

$9.75

Item # CL68

Support

Support

$340.56

Item # FC28

Switch Box

Switch Box

$250.60

Item # FC122

Top Roller Assy Complete

Top Roller Assy Complete

$1,318.81

Item # FC146

Top Roller Pin

Top Roller Pin

$9.07

Item # FC09

Top Roller w/ Axle

Top Roller w/ Axle

$350.00

Item # FC135

Tube

Tube

$8.25

Item # CL59

Washer Nylon

Washer Nylon

$2.36

Item # FC21

Washer, sae, 1/2

Washer, sae, 1/2

$1.00

Item # XOAJ

Washer, sae, 1/4

Washer, sae, 1/4

$1.00

Item # XOAF

Washer, sae, 3/4

Washer, sae, 3/4

$1.00

Item # XOAM

Washer, sae, 3/8

Washer, sae, 3/8

$1.00

Item # XOAH

Washer, sae, 7/16

Washer, sae, 7/16

$1.00

Item # XOAI

Washer, split lock, 1/4

Washer, split lock, 1/4

$1.00

Item # XODF

Washer, split lock, 3/8

Washer, split lock, 3/8

$1.00

Item # XODH

Washer, tooth lock, 1/8

Washer, tooth lock, 1/8

$1.00

Item # XOEB

Washer, uss, 1/4

Washer, uss, 1/4

$1.00

Item # XOBF

Washer, uss, 3/16

Washer, uss, 3/16

$1.00

Item # XOBD

Washer, wave, 1/2

Washer, wave, 1/2

$1.00

Item # XOFJ

Washer, wave, 3/16

Washer, wave, 3/16

$2.00

Item # XOFD

Wear Block, Carbide*

Wear Block, Carbide*

$51.37

Item # EZ80

Wheel Truck

Wheel Truck

$245.22

Item # FC27

Wheel, Dolly

Wheel, Dolly

Wheel for the Clarke OEM Floorcrafter dolly. Also used on the OBS18 and buffers.

$35.40

Item # FC110

Wheel, Side

Wheel, Side

Green urethane wheel with bearings and spacer

$72.87

Item # FC01

Wheels, Poly Rear 2/set

Wheels, Poly Rear 2/set

$120.68

Item # FC118

Wooden Handle

Wooden Handle

$36.61

Item # AS35

Write a review

Please login or register to review
